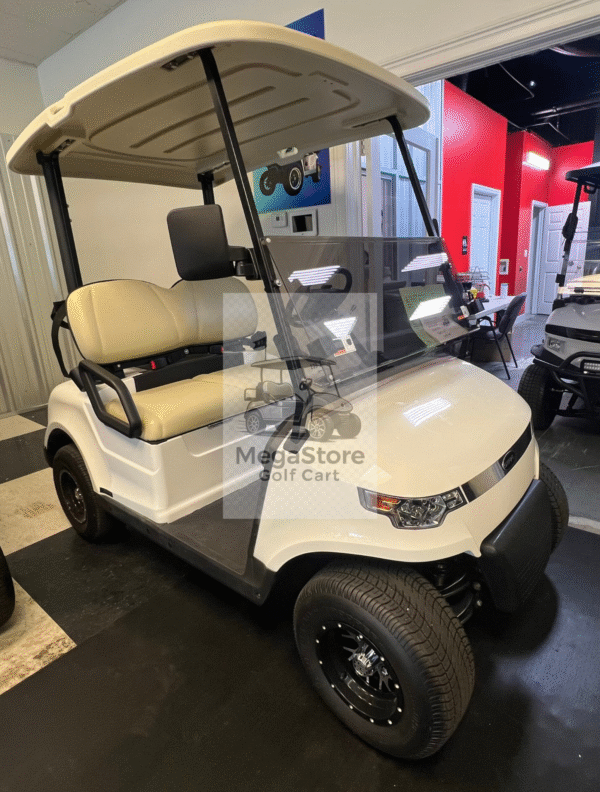

2023 StarEV Capella 2 – Lithium – White (Recreational Use Only)

The 2023 StarEV Capella 2 is a compact electric cart designed for private-property and recreational environments such as resorts, campuses, event venues, gated communities, and large residential properties. Built for comfort and durability, it features a sturdy steel chassis, a smooth electric drive system, and multiple long-lasting lithium battery options.

This model is not intended for public-road transportation and is suitable only for controlled, off-road, or privately managed areas.

---

Key Features

Dimensions

• Overall: 95” L × 48.625” W × 74” H

• Wheelbase: 65.7”

• Front Track: 36.7”

• Rear Track: 38.6”

• Ground Clearance: 4.8”

Body & Chassis

• Powder-coated welded steel frame

• Injection-molded plastic body with high-grade finish

• Extended roof matched to vehicle color

Power & Performance

• 48V AC electric motor (4kW)

• Lithium battery options: 80Ah, 105Ah, 160Ah, 210Ah

• 350A AC speed controller

• Direct motor-shaft drive

• Maximum operational speed: up to 19.5 mph

• Turning radius: 10.17 ft

• Load capacity: 800 lbs

• Approx. curb weight: 1089 lbs

Suspension & Steering

• Rack-and-pinion steering

• Front: Independent coil-over shock system

• Rear: Leaf spring + shock absorption

Braking System

• Mechanical service brake

• Foot-operated mechanical parking brake

Tires & Wheels

• 10” radial tires

• Machined black honeycomb aluminum rims

---

Important Use Information (Required for Compliance)

• This product is not a motor vehicle.

• Not designed or equipped for public-road or highway use.

• Recommended for private property, recreational settings, and controlled environments only.

• Where applicable, follow local regulations for low-speed recreational carts.
